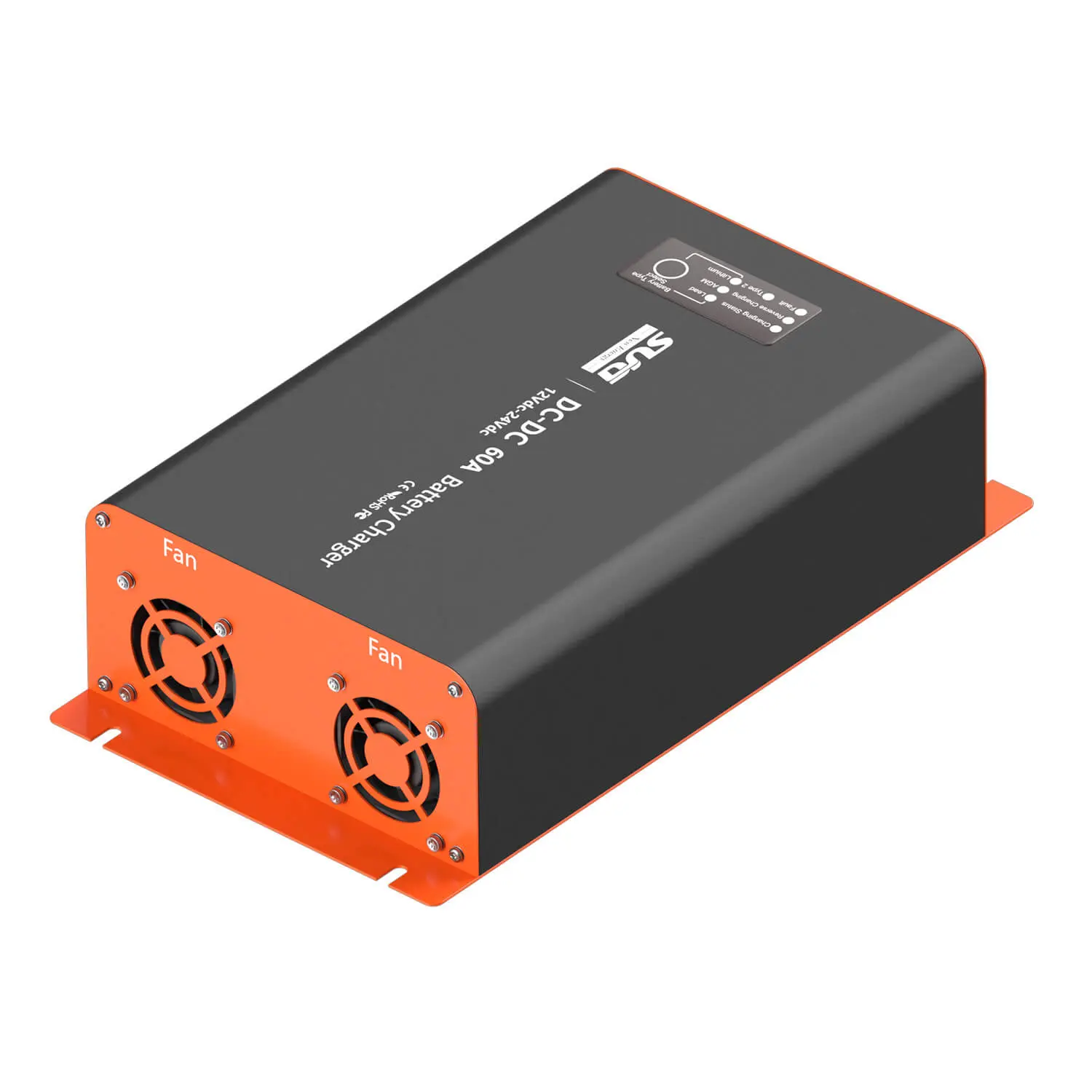

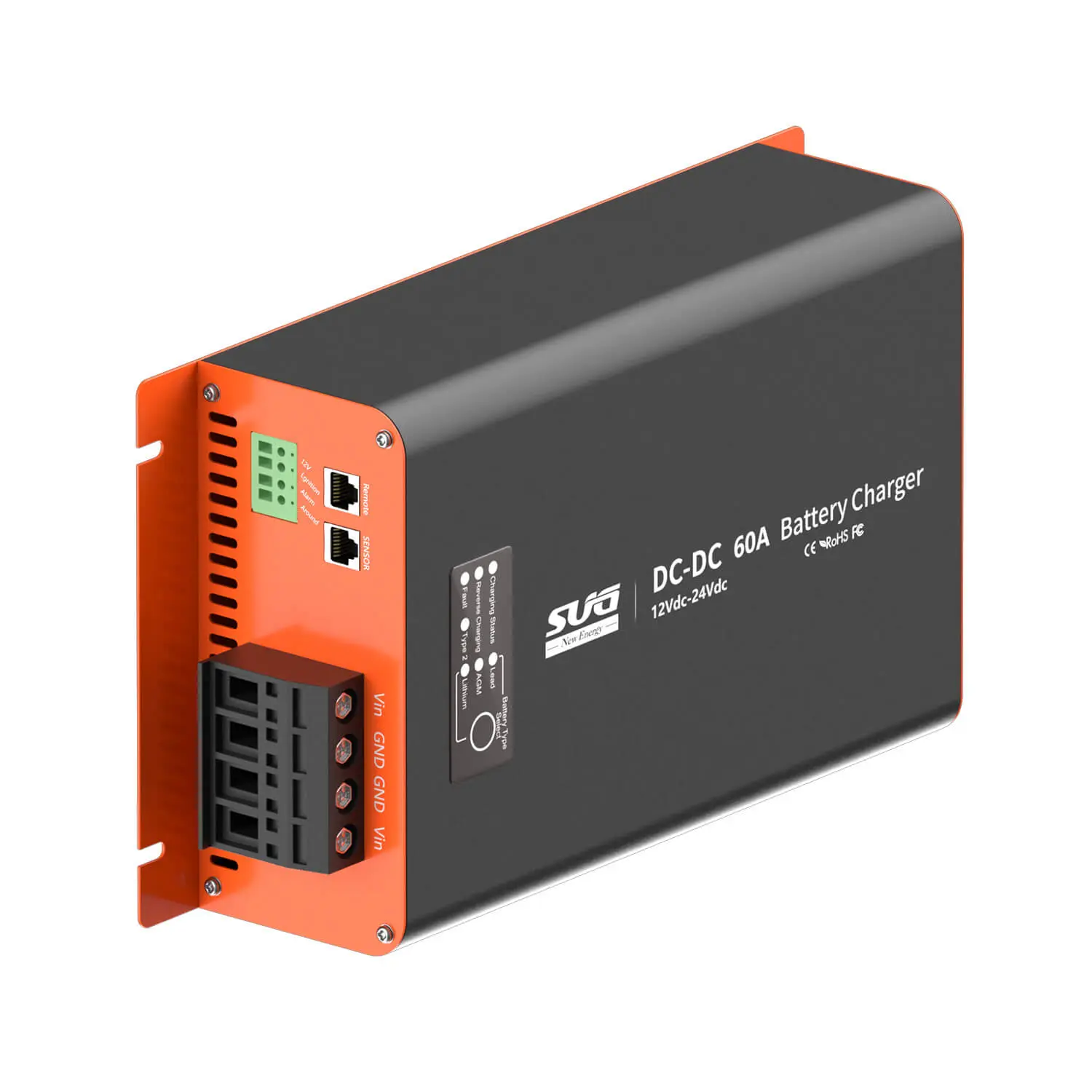

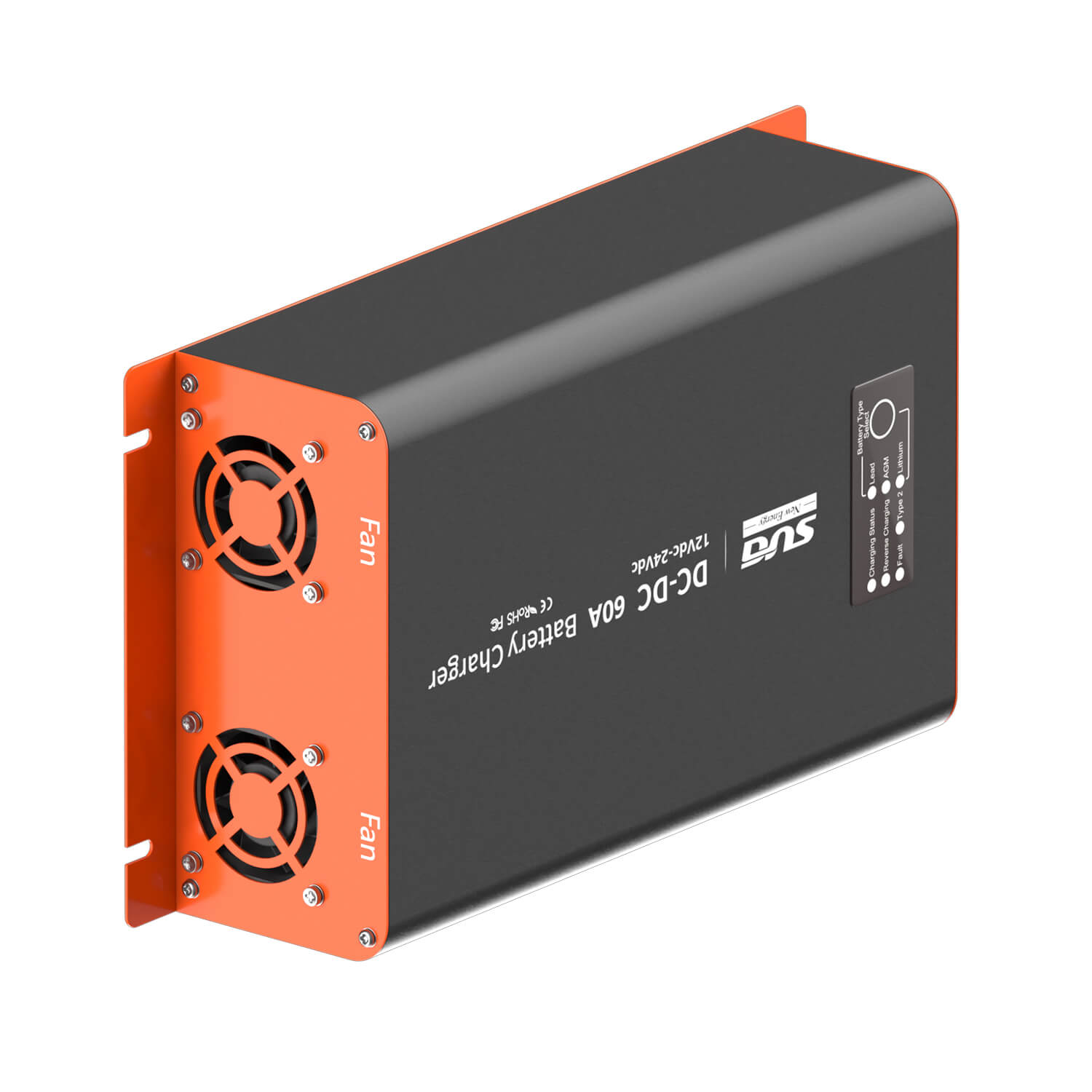

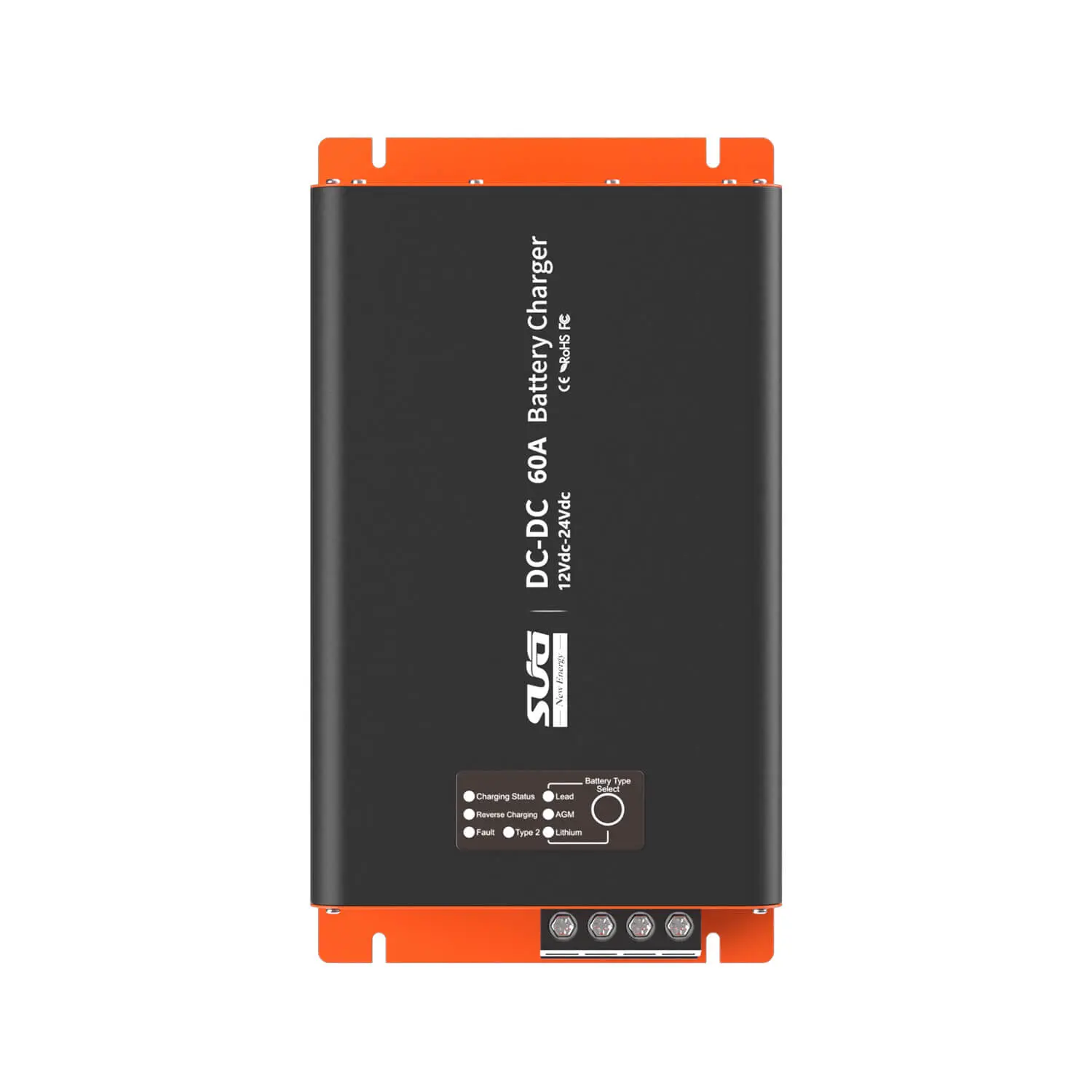

SDC DC to DC Dual Battery Charger 12/24VCD-60A

* Intelligent protection

* Compatible with many battery type

* Two/Three stagecharge charging

product details

Product Introduction

SDC DC-DC charger, capable of maintaining auxiliary battery system charging throughout the journey. DC-DC battery charger is designed specifically for dual battery systems, ensuring reliable performance The auxiliary battery system operates at peak efficiency for a longer period of time when disconnected from the power grid. When the engine is running, the DC-DC charger will safely charges the auxiliary atterypack. Supplements for RVs, ships, or any other off grid vehicles.

Product features

1. Multi-chemistry battery types ( flooded, gel, AGM, and lithium)

2. 3-stage charging(bulk, absorption ,and float)

3. Smart protection features ( battery isolation, over-voltage safety, overheat protection, and short circuit protection)

4. Overcomes voltage drop caused by long cable runs

5. Able to charge an auxiliary battery to 100% state of charge

6. Increases run time of loads, such as fridges and lights

7. Prolongs battery life

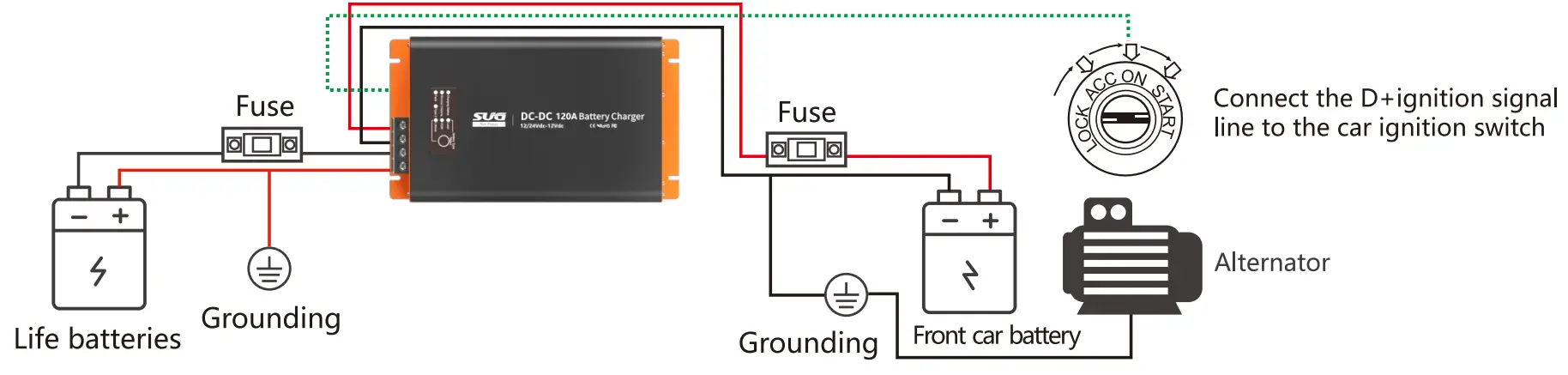

Product Connection Diagram

Product Parameters

Model	SDC1212-120A	SDC1224-60A	SDC-1224-12-120A	SDC-1224-24-60A
Nominal input Voltage	12V	12V	12V/24V	12V/24V
Input voltage range	8V~16V		8V~16V/16V~32V
Charging current	120A	60A	120A	60A
Charging voltage	13.2V~14.7V	26.4V~29.4V	13.2V~14.7V	26.4V~29.4V
Output	1540W	1540W	1540W	1540W
Efficiency up to	>0.9
ldle power Consumption	<0.4A
Ambient humidity	≤95%Non-Condensing
Residual rupple of Output voltage at Rated current	<50 mVeff
Ambient temperature For operation	-20℃~50℃
Net dimension(LxWxH)	27013073mm
Outer box size(LxWxH)	27313376mm
NW. (kg)	1.8
GW. (kg)	2.3
Certifcation	CE FCC ROHS
Protective function Specifcations
Protections	High-voltage, low-voltage, high-temperature, short-circuit
Low voltage cut of	8V		8V/16V
low voltage restart	10V		10V/20V
High-voltage shutdown	16V		16V/32V
High voltage restart	15.5V		15.5V/31V
