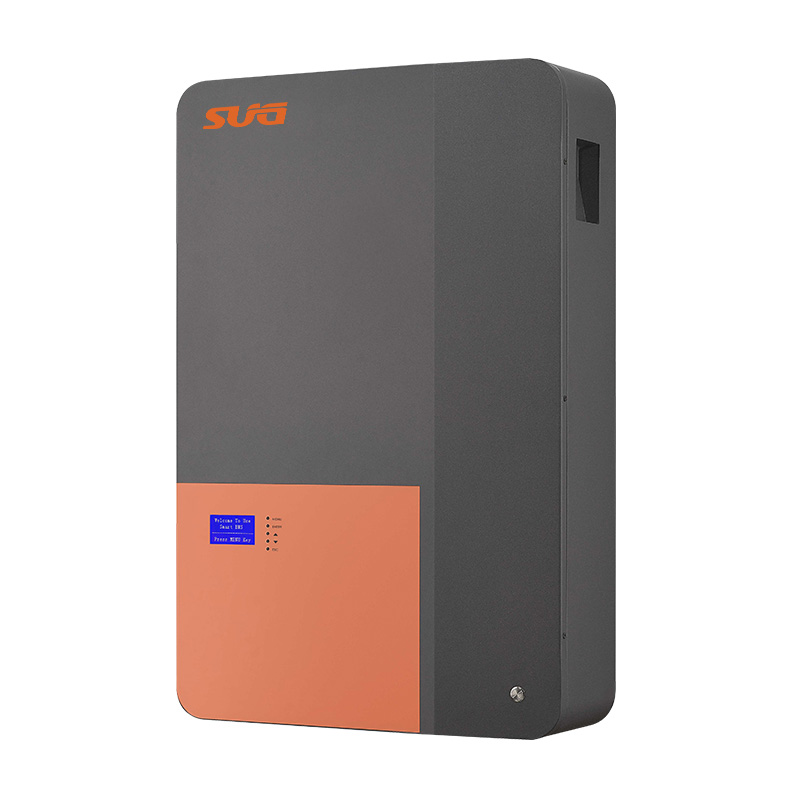

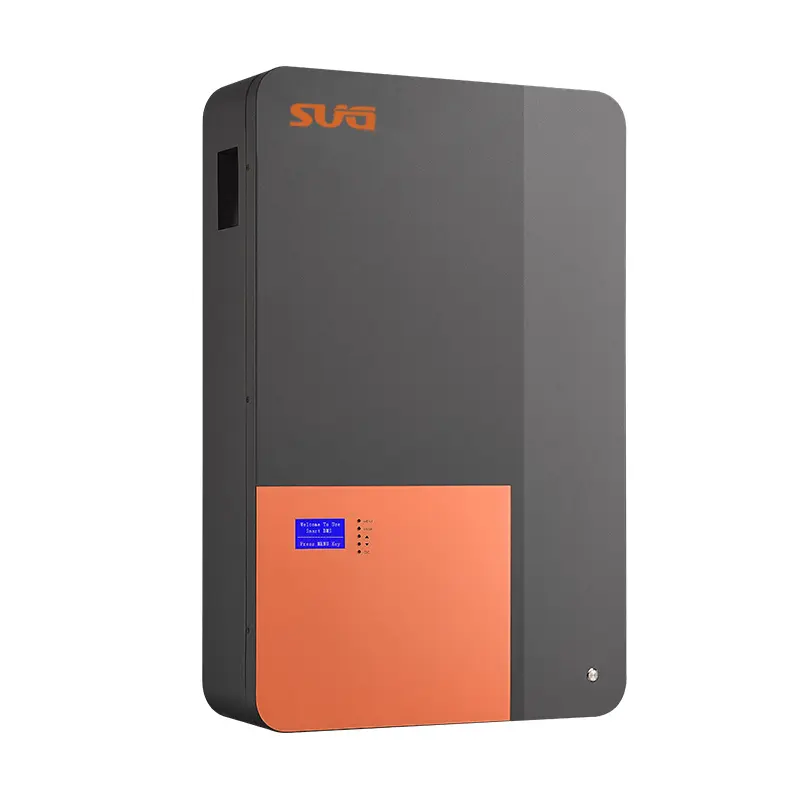

SPW-B 48V/51.2V 200Ah Power Wall Lithium Energy Storage Battery

48V/51.2V 100Ah/200Ah/300Ah

• BMS protection

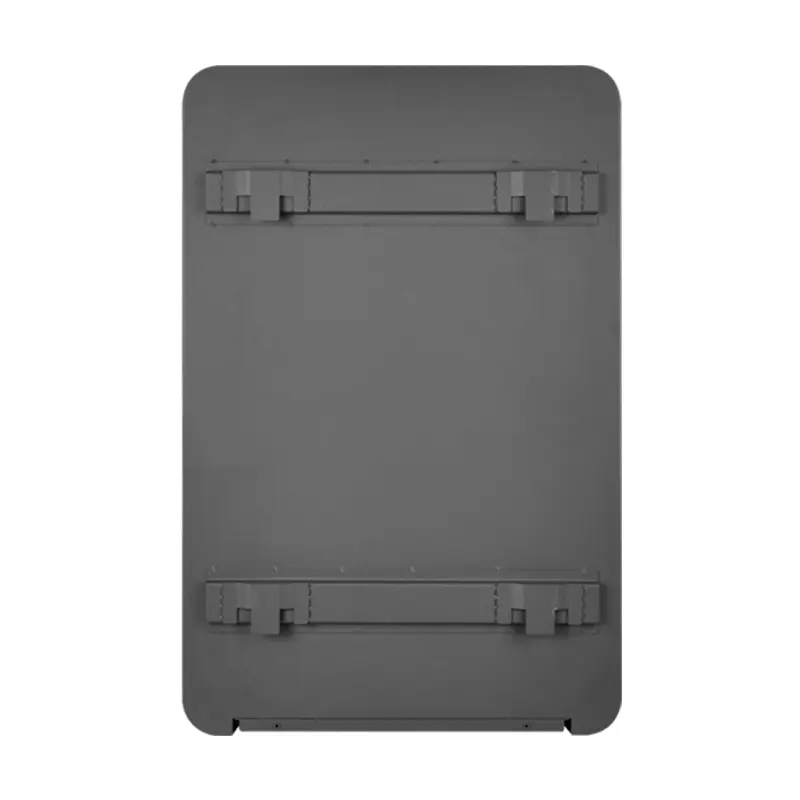

• Wall hanging design

• Home energy storage

• Intelligent communication

The SPW-B Power Wall lithium energy storage battery, uses high cycle lithium iron phosphate cells, which are more convenient and aesthetically pleasing to install. The high-performance BMS protection and management battery system has a wider range of use and longer lifespan than traditional batteries. Using SUG's exclusive color screen design, you can check the battery's operation status quickly and conveniently.

product details

Product features

1. Grade A LiFePO4 cell

2. Parallel support for 15PCS

3. Compatible with multiple inverter brands

4. 6000 cycles @ DOD80%

5. Bluetooth/WIFI optional

6. BMS 100A/150A/200A optional

7. LCD color display screen

Application Area

※ Energy storage system, control system, alarm system, power system, database

※ Emergency lighting system, emergency power supply, UPS

※ Telecommunications, communication, and fire protection

Product Parameters

Model	SPW-B-48100	SPW-B-51.2100
Standard voltage	48V	51.2V
Standard capacity	100Ah	100Ah
Rated capacity	4.8kWh	5.12kWh
Working voltage	40.5-54V	43.2-57.6V
Standard charging current	50A	50A
Standard discharging current	100A	100A
Suggested DOD	80%
Cycle life	>6000 cycles
IP Rating	IP21(IP65 optional)
Discharge operating temperature	-20℃-60℃
Charging operating temperature	0℃-45℃
Maximum parallel	15PCS
Communication	RS232/CAN/RS485 (WIFI/BT optional)
Display	LCD color display screen
Warranty	5 Years
Certificate	UN38.3/MSDS/CE/ROHS/FCC
NW.(kg)	47.2	48
GW.(kg)	51.4	55
Product size (mm)	545460200	545460200
Package size（mm）	625540300	625540300
