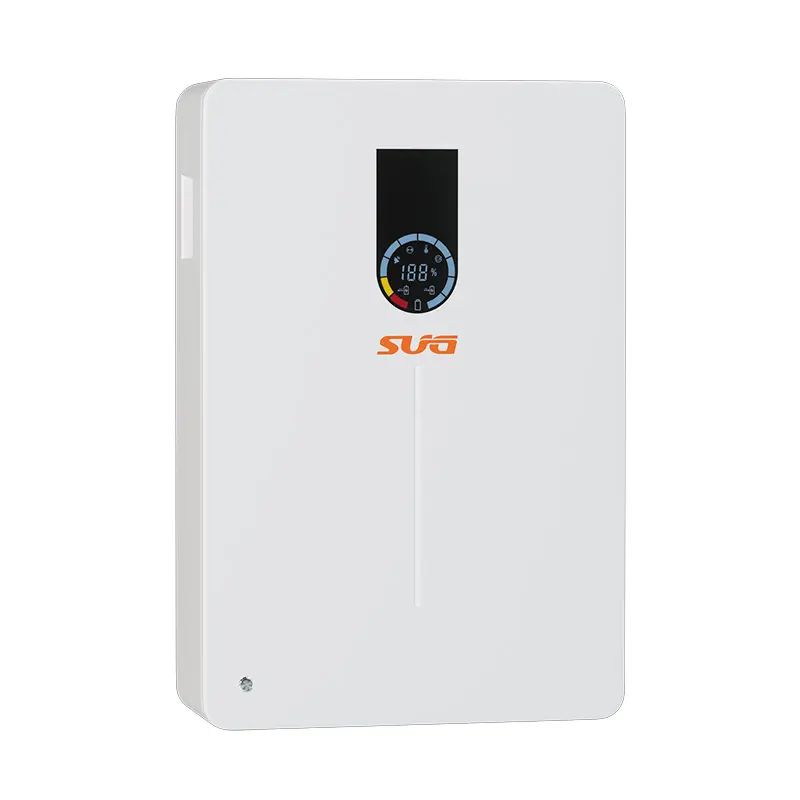

SPWN-Wall Mounted Lifepo4 Energy Storage Battery 48V 100Ah 4.8kWh
Product features
Grade A LiFe PO4 cell
Parallel support for 15PCS
Compatible with multiple inverter brands
6000 cycles @ DOD80%
Bluetooth/WI FI optional
LCD color display screen
BMS 100A/ 150A/200A optional
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
Product Parameters
| Model |
SPW-A-48100 |
SPW-A-48200 |
SPW-A-48300 |
SPW-A-51.2100 |
SPW-A-51.2200 |
SPW-A-51.2300 |
| Standard voltage |
48V |
48V |
48V |
51.2V |
51.2V |
51.2V |
| Standard capacity |
100Ah |
200Ah |
300Ah |
100Ah |
200Ah |
300Ah |
| Rated capacity |
4.8kWh |
9.6kWh |
14.4kWh |
5.12kWh |
10.24kWh |
15.36kWh |
| Working voltage |
40.5-54V |
43.2-57.6V |
||||
| Standard charging current |
50A |
150A |
50A |
150A |
||
| Standard discharging current |
100A |
200A |
100A |
200A |
||
| Suggested DOD |
0.8 |
|||||
| Cycle life |
>6000 cycles |
|||||
| IP Rating |
IP21(IP65 optional) |
|||||
| Discharge operating temperature |
-20℃-60℃ |
|||||
| Charging operating temperature |
0℃-45℃ |
|||||
| Maximum parallel |
15PCS |
|||||
| Communication |
RS232/CAN/RS485 (WIFI/BT optional) |
|||||
| Display |
LCD color display screen |
|||||
| Warranty |
5 Years |
|||||
| Certificate |
UN38.3/MSDS/CE/ROHS/FCC |
|||||
| NW. (kg) |
45 |
110 |
130 |
50 |
115 |
135 |
| GW.(kg) |
55 |
125 |
145 |
60 |
130 |
150 |
| Product size (mm) |
545*460*200 |
530*790*200 |
530*845*200 |
545*460*200 |
530*790*200 |
530*845*200 |
| Package size（mm） |
625*540*300 |
870*610*410 |
930*610*410 |
625*540*300 |
870*610*410 |
930*610*410 |
